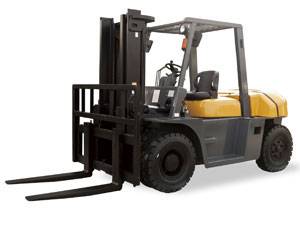

6T Diesel Forklift Truck

Machine Models: FD60
Capacity :6000kg

Diesel Forklift

5T 6T 7T 8T 10T

Click to enlarge

Description
Landmark 6 ton diesel forklift truck is very famous for its good stability and flexible utility. This diesel counterbalance truck is often used for lifting and transporting cargoes in the outdoors. Compared to gasoline engine, diesel engine possesses the advantages of better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity. The 6 ton diesel forklift truck is extensively applied in ports, stations, airports, freight yards, warehouses, workshops, distribution centers and other places.

Parameters

SPECIFICATION	Item		FD50	FD60	FD70	FD80	FD100
	Load capacity	kg	5000	6000	7000	8000	10000
	Load center	mm	600	600	600	600	600
DIMENSIONS	Max. lifting height	mm	3000	3000	3000	3000	3000
	Free lift	mm	205	205	210	205	205
	Fork size	mm	122015060	122015060	122015065	122017075	122017575
	Overall length(without fork)	mm	3455	3530	3590	3740	4255
	Total width	mm	1995	1995	1995	1995	2245
	Mast height (fork lowering)	mm	2500	2500	2500	2625	2850
	Overall height fork raised	mm	4420	4420	4420	4545	4330

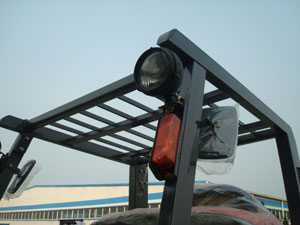

	Height to head guard	mm	2450	2450	2450	2450	2560
	Truck weight	kg	8050	8750	9450	10450	12450
TIRES	front/rear		4/2	4/2	4/2	4/2	4/2
	front axle		8.25x15-14PR	8.25x15-14PR	8.25x15-14PR	8.25x15-14PR	9.00x20-14PR
	rear axle		8.25x15-14PR	8.25x15-14PR	8.25x15-14PR	8.25x15-14PR	9.00x20-14PR
ENGINE	Model		ISUZU 6BG1	Chaochai 6102	Mitsubishi S6S-T	Chaochai 6102	ISUZU 6BG1
	Rated power	JIS PS	112/2000	110/2500	63.9/2300	110/2500	112/2000
	Rated torque	JIS kg-m	42.5/1500	36/1650	28.5/1700	36/1650	42.5/1500
	Number of cylinders		6	6	4.9	6	6
	Dislacement	L	6.494	5.785	6	5.785	6.494

Features
Our 6 ton diesel forklift trucks use high quality diesel engine, MITSUBISHI S6S-T, ISUZU 6BG1 and CHAOCHAI 6102BG, which can offer strong power.
It adopts classical space frame structure. It is ergonomically designed, aesthetic in appearance, compact in structure and easy to operate.
Integrated control system makes this diesel counterbalance truck easier to manipulate.
Landmark 6 ton diesel forklift trucks have gained the ISO9000 and CE certifications.
Our company has an innovative team who pursuit the best performance. We also provide high-quality and timely service.
Built-in tilt cylinder makes the driving space much wider.
This diesel counterbalance truck can be equipped with different kinds of engines, which provides multiple choices for customers.

Components of 6 Ton Diesel Forklift Truck

Engine	It is the power unit of the forklift truck, which converts heat energy into mechanical energy.
Transmission Gear	It includes clutch, transmission, main transmission, differential mechanism, axle shaft, etc.
Operating Control	It consists of steering mechanism and brake system.

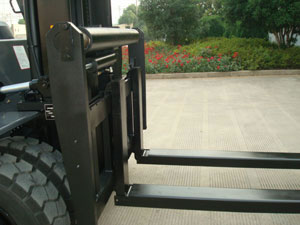

Working Device	It includes inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and other parts. Its role is to lift or stack cargoes.
Hydraulic System	It includes fuel tank, hydraulic pump, distributor, lifting hydraulic cylinder and tilt cylinder. It can realize lifting and tilting of cargoes.
Electric System	It consists of power section and the electric part, such as storage battery, alternator, starter motor, ignition device, illumination device and loudspeaker.

Operation Attentions
Customers need to fully know the working environment, the maximum load and the maximum lifting height of the 6 ton diesel forklift truck and then choose appropriate models and configurations.
To choose proper diesel counterbalance trucks, users should take many factors into consideration. These factors include working efficiency, quantity of drivers, budgeted cost, required lifting height, working aisle width, working environment, after-sale guarantee, and so on.

Packaging and Transportation
Shipping By Container.

Founded in 2007, Shanghai Landmark Forklift Co., Ltd. is a professional manufacturer and supplier of diesel counterbalance trucks in China. Landmark possesses vehicle assembly lines, painting lines, standard test sites and various testing and detection equipment and facilities. Our annual production capacity can reach 10,000 units. We have exported our 6 ton diesel forklift trucks to Australia, Russia, the United Kingdom and Northern Ireland, Korea, Iran, Southeast Asia, South America, Africa and Europe. We also develop many kinds of new diesel counterbalance trucks according to the usage characteristics and market requirements.
