4T Electric Forklift
Introduction

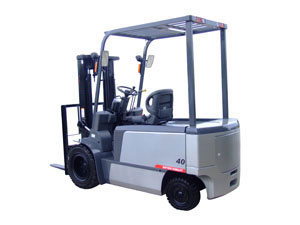

Landmark counterbalanced 4T electric forklift is a kind of material handling equipment that adopts storage battery to provide power. It is suitable for those areas that needs high requirements of environmental protection, such as indoor place and warehouse. This forklift enjoys non-polluting and energy-saving advantages. It adopts drive system with independent design, low noise and high efficiency. We also select imported motor and electric control units to ensure high reliability of hydraulic parts. Our company supplies lemon yellow type and silver 4T electric forklift. Landmark can customize different types of material handling equipment according to customers' demands.
| SPECIFICATION | Item | FB15 |
FB20 |
FB25 |
FB30 |
FB35 |
FB40 |
|
| Load capacity | kg |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
|
| Load center | mm |
500 |
500 |
500 |
500 |
500 |
500 |
|
| DIMENSIONS | Max. lifting height(VM300) | mm |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
| Turning raduis(outside) | mm |
1780 |
1980 |
2000 |
2140 |
2200 |
2450 |
|
| Overall length(without fork) | mm |
1955 |
2245 |
2285 |
2510 |
2560 |
2810 |
|
| Total width | mm |
1070 |
1150 |
1150 |
1225 |
1225 |
1390 |
|
| Mast height (fork lowering) | mm |
1995 |
1995 |
1995 |
2075 |
2075 |
2150 |
|
| Height to head guard | mm |
2100 |
2145 |
2145 |
2190 |
2190 |
2425 |
|
| Fork size (L×W×T) | mm |
920*100*35 |
1070*122*40 |
1070*125*45 |
1070*122*50 |
1070*150*50 |
||
| Tilt range(forward/backward) | deg |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
|
| Truck weight(with standard battery) | kg |
2690 |
3440 |
3820 |
4660 |
4960 |
5260 |
|
| TIRES | front/rear | 2/2 |
2/2 |
2/2 |
2/2 |
2/2 |
2/2 |
|
| front axle | 6.00-9-10-10PR |
21*8-9-16PR |
28*9-15-12PR |
28*9-15-14PR |
250-15-16PR |
|||
| rear axle | 16*6-8-10PR |
18*7-8-14PR |
18*7-8-14PR |
18*7-8 |
18×7-8 |
|||
| DRIVE LINE | Battery |
V/AH |
48/400 |
48/450 |
48/565 |
72/480 |
72V-560 |
80V-550 |
| Drive motor | kw/60min |
8 |
8 |
8 |
11 |
11 |
11 |
|
| Hydraulic motor | kw/5min |
8.2 |
8.6 |
8.6 |
10 |
10 |
13 |
|
| Control type | Driving AC control type , lifting DC control type |
|||||||
- Competitive Advantages
- This forklift can be operated flexibly. There are three converting modes that can provide support for skilled drivers.
- 4T electric forklift is fitted with CURTIS controller, which saves the repair cost, prolongs the service life of battery and reduces the operation cost of forklift truck.
- The highly integrated digital combined dashboard of this material handling equipment is of high reliability, high accuracy and good visibility. It could display the trouble code and enable the operator to repair the machine in time.
- The high strength fiber glass battery board is soundproof and heat-insulated.
- The control system of 4T electric forklift is provided with low-voltage protection function. When the discharge capacity of battery reaches 80%, the protection system will start automatically and the hydraulic lifting system will stop working, ensuring that this material handling equipment can be driven to charging station for battery charging in time.
- Landmark provides best service and accessories. Landmark service network can solve users' worry by supplying the timeliest service and the highest quality accessories.
Main Parts
4T electric forklift mainly consists of power unit, transmission, steering device, working device, hydraulic system and brake device.
Configurations
Optional configurations for this material handling equipment include solid tire, double front tire, no mark tire, alarm flash, rear work light, widened fork holder, supper high backrest, sheath of fork, windscreen with wiper, damping chair, safe belt, customized color, lengthened fork, rob, boom, job, bucket, hinged forks, side shift, rotator, fork petitioner, telescopic fork, drum clamp, pull-push, paper roll clamp, bale clamp, carton clamp, etc.
- Attentions
- 4T electric forklift is suitable for indoor logistics transport.
- Drivers who have been trained and hold driving licenses can drive this forklift.
- Check each control and alarm device before driving this material handling equipment. If there is damage or defect, it must be operated after repair.
- Material handling should not exceed the specified load. The pallet fork should insert below the cargoes and make cargoes distribute evenly on the fork. It is prohibited to use a single fork tip to pick the cargoes.
- Stable starting, steering, driving, braking and stopping are quite necessary. When we drive the 4T electric forklift on wet or slippery road, we need to slow down while steering.
- When this material handling equipment loaded with material is driving, we should ensure that the cargoes are lowered and the door frame is inclined to the rear.
Packaging and Transportation
Shipping By Container.
As a professional manufacturer and supplier of material handling equipment in China, Landmark mainly offers internal combustion counterbalance forklift and gasoline forklift truck. Our annual production capacity can reach 10,000 units. We have obtained ISO9001 quality system certificate, special equipment manufacturing license, CE certificate and SGS certificate. Till now, we have established exclusive selling agencies in Australia, Russia, the United Kingdom and Northern Ireland, Korea and Iran. Our 4T electric forklifts have been sold to Southeast Asia, South America, Africa and Europe.
